Kingtronics International Company

Dear Purchasers and sales, how is your work going? Would you like have a stabel supplier to help your business?

With over 20 years' development, our products has gained a high reputation in the global market. Here I introduce you our best seller for diode--6A10. If you are a famous distributor, I believe you have demands for this diode, or great interests in it. Below is detailed information for your reference. Kindly pls help me to promote to your clients.

FEATURES:

◆The plastic package carries Underwriters Laboratory

   Flammability Classification 94V-0

◆Construction utilizes void-free molded plastic technique

◆Low reverse leakage

◆High forward surge current capability

◆High temperature soldering guaranteed:

   250℃/10 seconds,0.375”(9.5mm) lead length,5 lbs. (2.3kg) tension

MECHANICAL DATA:

Case: R-6 molded plastic body

Terminals: Plated axial leads, solderable per MIL-STD-750,Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight:0.072 ounce, 2.05 grams

Your inquiry/order are highly appreciated any time. Pls feel free to emeil to sales2@kingtronics.com and we will give you our best prices and excellent service.

Dear Sir or Madam:
Greeting for Easter holiday!

Do you know that Kingtronics have two factories?

Kingtronics is one of the oldest trimmer factory in CN, with ISO 9001: 2008 certied, we produce these trimmer: 3296 3006 3386 3266 3362 3329 3590S.

Besides, we are very strong in bridge rectifier. Please check below prices. Do you have bridge rectifier or diode LL4148 M7 S1M inquiry? Please send to me.
US$0.0492/pc     DB107S  DBS   50pcs/Tube  RoHS    with UL approved
US$0.0432/pc     MB10S MBS  2500pcs/Reel  RoHS    with UL approved

More diode & bridge rectifier:

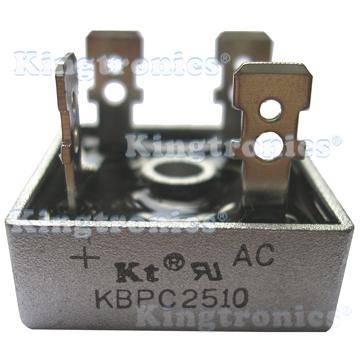

Diode M7, LL4148, S1M, GS1M, SM4007, UF4007, 1A7, 6A10, 1N4937, 1N5343B;    Zener BZV55C, BZX55C, BZX84C, BZX85C, 1N4761A, ZM4728;   Bridge DB107, MB10S, KBL410,  KBPC2510,  KBPC3510,  GBU410, GBJ810....etc...

Meet us at Expo Electronica Moscow Russia 2012 from April 11th to 13th Booth No J36 Hall 3

Best wishes,
Ms. Sunny Chen

Sales Coordinator
Kingtronics International Company
Tel: 86 769 8118 8110  Fax: 852 8106 7099
www.kingtronics.com
skype: kingtronics.sales2
email (msn): sales4@kingtronics.com

Kt Kingtronics---LL4148 Small Siganal Diode

Datasheet: http://www.kingtronics.com/pdf/LL4148.pdf

Fast switching diode in MiniMELF case especially suited
for automatic surface mountin, used in Extreme fast switches.

Price is unbeatable on the market ! We are ISO manufacturer with two factories.

LL4148  LL34 T&R RoHS

Case: Minimelf / SOD80
L/T: Stock or 3~4 Weeks
Package: Tape&Reel
MPQ: 2.5Kpcs/Reel
Kingtronics own brand " KINGTRONICS"

Other diodes: M7, MCL4148, S1M, GS1, M1N4001S-1N4007S, 1N4001-1N4007, 1N5391-1N5399, RL201-RL207, 1N5400-1N5408, 6A05-6A10, FR101-FR107, 1N4933-1N4937, FR151-FR157, FR201-FR207, 1N5817-1N5819, 1N5820-1N5822, BZV55C & ZMM55C, RS1M, SM4007 melf, UF4007

Looking forward for your inquiry !!

Thanks in advance!

Contact Kingtronics sales Olivia:  sales1@kingtronics.com


SMD Rectifier M1-M7

SURFACE MOUNT GENERAL RECTIFIER
Reverse Voltage -50 to 1000 Volts Forward Current -1.0 Ampere

SMD Rectifier M1-M7 ( SMD 4001-4007 ) Parameters download PDF files
http://www.kingtronics.com/pdf/M7-diode.pdf

SMD Rectifier M1-M7 Features
The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
For surface mounted applications
Low reverse leakage
Built-in strain relief, ideal for automated placement
High forward surge current capability
High temperature soldering guaranteed: 250°C/10 seconds at terminals
SMD Rectifier M1-M7 MECHANICAL DATA

Case : JEDEC DO-214AC molded plastic body
Terminals : Solder plated solderable per MIL-STD-750, Method 2026
Polarity : Color band denotes cathode end
Mounting Position : Any
Weight : 0.003 ounce 0.093 grams


SMT technology, M7 can replace S1A-S1M , GS1A-GS1M, SMA, SMD 1N4007. It has great demand on the market!

If you have inquiry pls contact Olivia: sales1@kingtronics.com


My dear purchaser and sales. Are you looking for zener diode currently? Kingtronics can help you find the best one.

As we know, zener diode has a wide application in the market. It usually has a large consumption. Here some hot zener diode listed for your check.

Zener BZV55C, BZX55C, BZX84C, BZX85C, 1N4761A, ZM4728

With excellent quality and unbeatable price, we are cooperating with our customers successfully. Do you want to be the next one?

Pls dont hesitate to contact me or email to sales2@kingtronics.com

A diode is an electrical component acting as a one-way valve for current. And diode is used in very wide range.
Zener diodes are designed to be operated in reverse-bias mode, providing a relatively low, stable breakdown, or zener voltage at which they begin to conduct substantial reverse current.
A Zener Diode is a special kind of diode which permits current to flow in the forward direction as normal, but will also allow it to flow in the reverse direction when the voltage is above a certain value - the breakdown voltage known as the Zener voltage.

A zener diode may function as a voltage regulator by acting as an accessory load, drawing more current from the source if the voltage is too high, and less if it is too low .
kingtronics popular part Zener diode BZV55C, BZX55C, BZX84C, BZX85C, 1N4761A, ZM4728 have very strong offer with Kingtronics own brand “KINGTRONICS”. Brief features for your reference:

FEATURES:
Low zener impedance
Low regulation factor
Glass passivated junction
High temperature soldering guaranteed:
260℃/10S at terminals
Case: Minimelf / SOD80
Packaging: Tape and Reel
MPQ: 2.5Kpcs/reel

As we have noted , the purpose of the rectifier section is to convert the incoming ac from a transformer or other ac power source to some form of pulsating dc. That is, it takes current that flows alternately in both directions as shown in the first figure to the right, and modifies it so that the output current flows only in one direction, as shown in the second and third figures below.

The circuit required to do this may be nothing more than a single diode, or it may be considerably more complex. However, all rectifier circuits may be classified into one of two categories, as follows:

Half-Wave Rectifiers. An easy way to convert ac to pulsating dc is to simply allow half of the ac cycle to pass, while blocking current to prevent it from flowing during the other half cycle. The figure to the right shows the resulting output. Such circuits are known as half-wave rectifiers because they only work on half of the incoming ac wave.

Full-Wave Rectifiers. The more common approach is to manipulate the incoming ac wave so that both halves are used to cause output current to flow in the same direction. The resulting waveform is shown to the right. Because these circuits operate on the entire incoming ac wave, they are known as full-wave rectifiers.

Kingtronics produce trimming potentiometers, dipped tantalum capacitors, multilayer ceramic capacitors, and diode & bridge rectifier. We are ready to respond each of your enquiry fastly and professionally .

FEATURES:

DO-27 Package diode

Axial leads diode

3.0 AMP diode

High current capability

Low leakage

Available with N5400, 1N5401, 1N5402, 1N5403, 1N5404, 1N5405, 1N5406, 1N5407, 1N5408

Other diodes: 1N4001S-1N4007S, 1N4001-1N4007, 1N5391-1N5399, RL201-RL207, 1N5400-1N5408, 6A05-6A10, FR101-FR107, 1N4933-1N4937,

FR151-FR157, FR201-FR207, 1N5817-1N5819, 1N5820-1N5822, LL4148, BZV55C & ZMM55C, RS1M, SM4007 melf, UF4007

A diode is an electrical component acting as a one-way valve for current.

When voltage is applied across a diode in such a way that the diode allows current, the diode is said to be forward-biased.

When voltage is applied across a diode in such a way that the diode prohibits current, the diode is said to be reverse-biased.

The voltage dropped across a conducting, forward-biased diode is called the forward voltage. Forward voltage for a diode varies only slightly for changes in forward current and temperature, and is fixed by the chemical composition of the P-N junction.

Silicon diodes have a forward voltage of approximately 0.7 volts.

Germanium diodes have a forward voltage of approximately 0.3 volts.

The maximum reverse-bias voltage that a diode can withstand without "breaking down" is called the Peak Inverse Voltage, or PIV rating.

Kingtronics produce and sell many different kinds of diodes and rectifiers, general purpose diode M7, 1N4007, 1N5408, switching diodes LL4148, zener diodes BZV55C, fast recovery diodes etc. These diode products are widely used in LCD TV, CRT color TV sets, monitors, speakers, energy-saving lamps, microwave ovens, printers, set-top boxes, small household electrical appliances and other fields.

If you need any products,please feel free to contact us.Look forward to hear from you.
